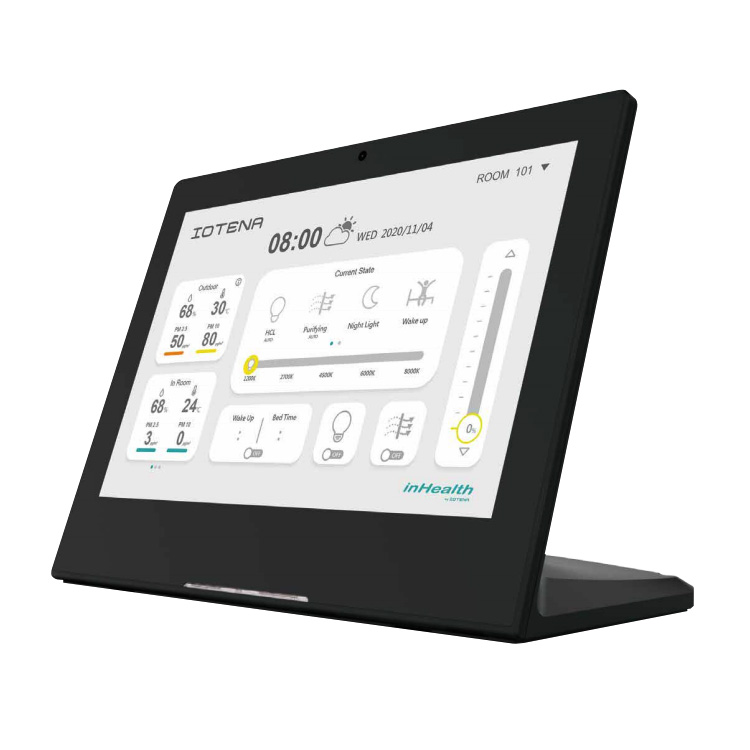

InTouch i10s
InTouch i10s is a 10.1” Touch Panel, featuring capacitive multi-touch TFT-LCD screen. Natively installed with the inHealth central control app, the touch panel is compatible with the entire inHealth system.
InTouch i10s is a stand-alone touch panel with android system and built-in control app.
InTouch i10s offffers a well-designed user interface for controlling all the devices related to inHealth system, including air, lighting, temperature, and water. Touch screens simplify and enhance the way users to control the whole system, to monitor the status of devices, and to read the message of the system.
Features
- With internet function for connecting to central cloud
- 10.1” touch panel
- Capacitive multi-touch screen
- Free Standing design for easy use
- Built-in inHealth central control app
Specififications
Display Overview
| Screen Type |
LCD IPS |
| Size |
10.1″ |
| Touch function |
10-point multi-touch screen |
| Resolution |
1280 x 800 |
| Aspect Ratio |
16:10 |
| Contrast Ratio |
800 |
| Viewing Angle |
85/85/85/85 |
| Brightness |
250cd/m2 |
Processing System
| CPU |
Quad core Cortex A17 1.8GHz |
| Memory |
RAM 2GB ; ROM 16GB |
| Operating System |
Android 8.1 |
| Software Support |
Compatible with inHealth Cloud-based Central Control System |

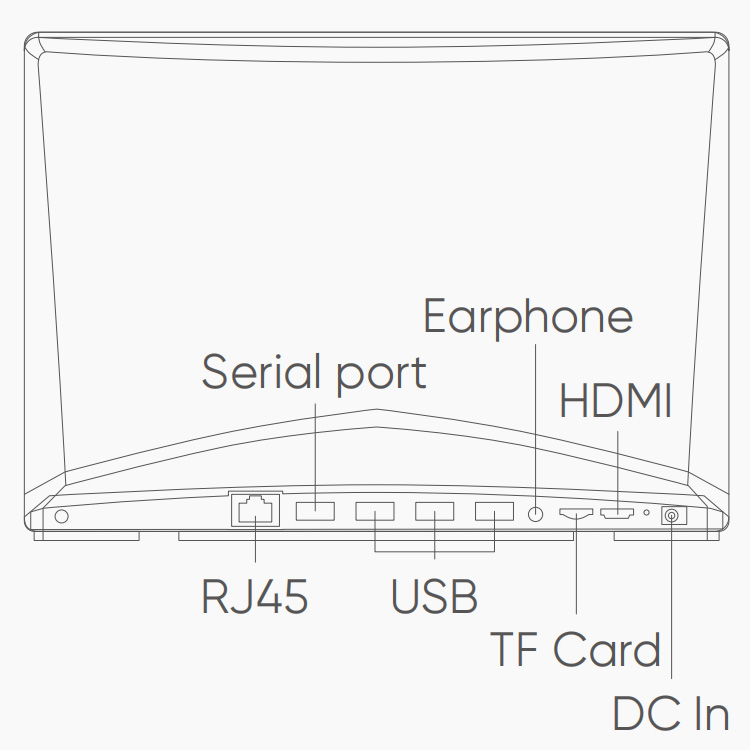

Connectivity
| Ethernet |
RJ45,100M/1000M |
| Wi-Fi |
802.11b/g/n |
| Bluetooth |
Bluetooth 4.0 |
Power
Mechanical
| Input voltage |
DC12V |

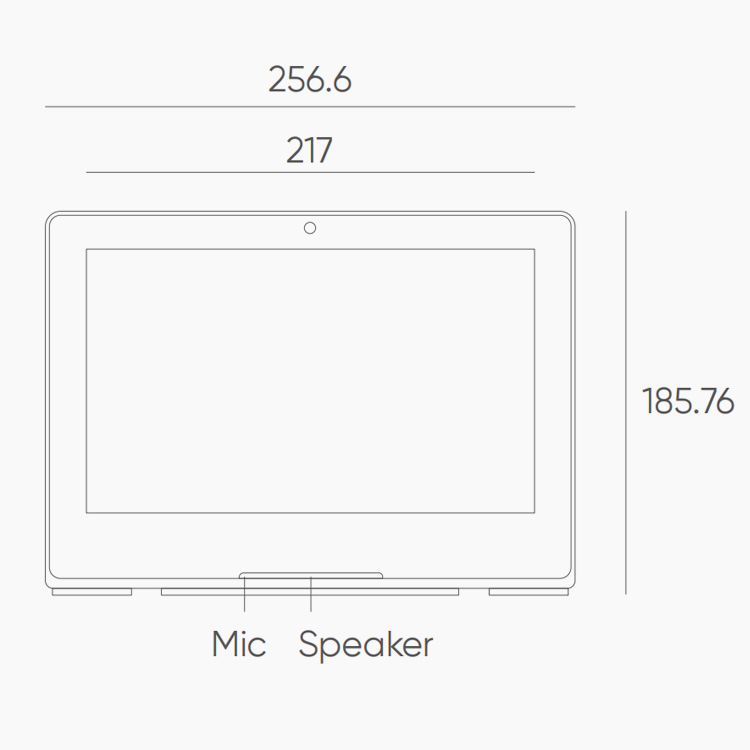

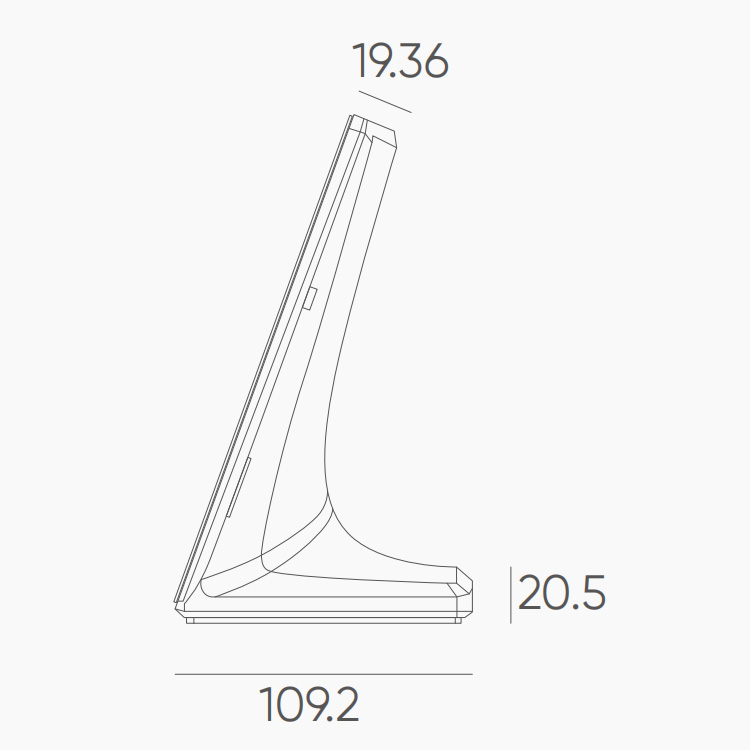

| Dimensions (W x H x D) |
256.58 x 108.5 x 185.76 mm |
| Housing material |
Plastic |
| Weight |
830 g |
| Mounting |
Free Standing type |
| Resistance |
Indoor use only |
Environment
| Operating Temperature |
0°C to 40°C |
Reliability
| MTBF |
1 year |
| Warranty period |
|
